Facts:
Consistency (pulp and
paper industry) up to 2%

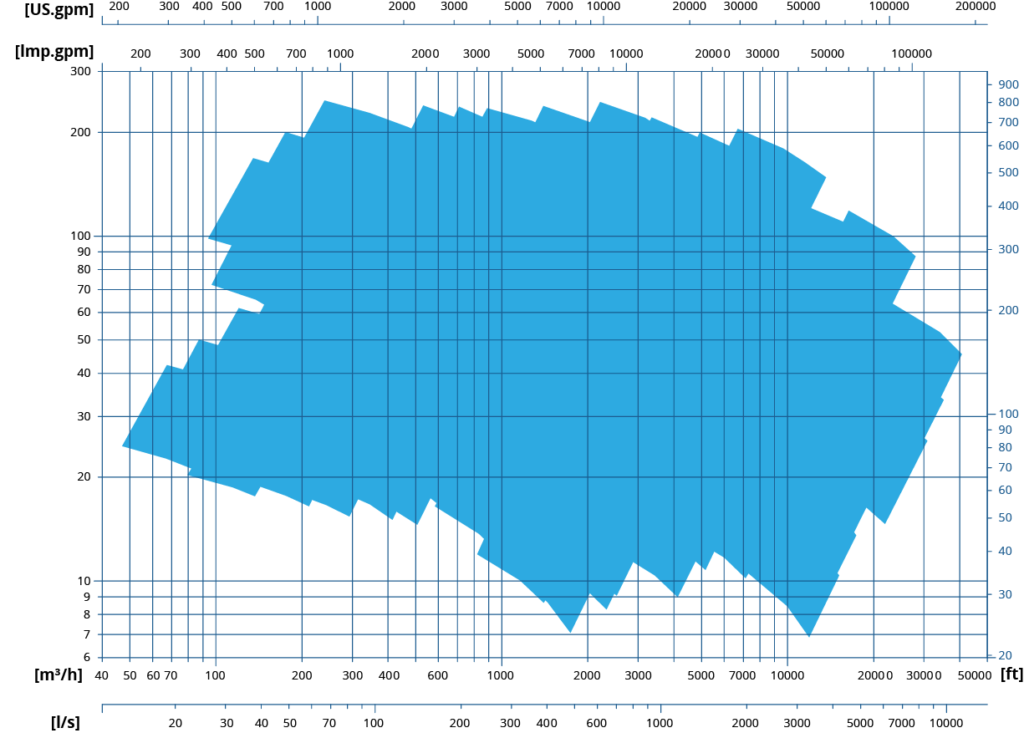

Head
up to 250 m
Flow rate
up to 40,000 m³/h
Pressure
up to 25 bar
Temperature
up to 80° C
Power
up to 7,000 KW
Efficiency
up to 91%

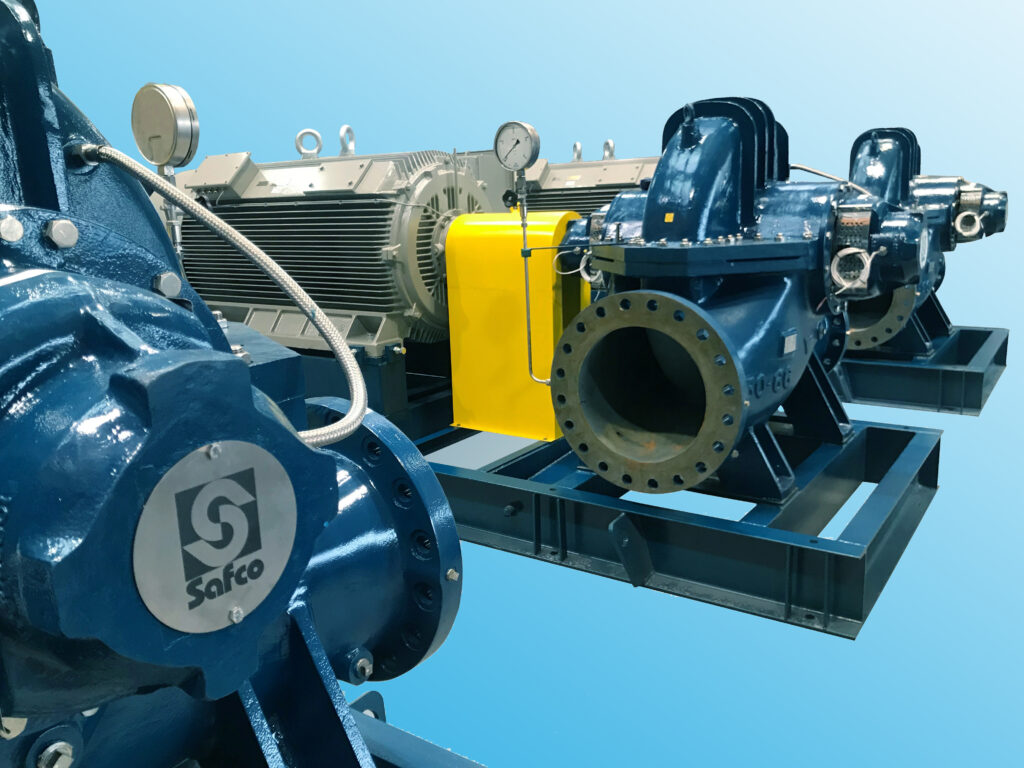

MEHU split case pumps
save valuable energy with efficiencies of up to 91%. All pumps are fitted with a double-flow radial impeller which achieves very favorable NPSH values. Due to the axial split case design, maintenance is fast and easy. Designed with a double-flow radial impeller and in-line casing, the pump can be installed horizontally or vertically.
MEHU DSP split case pumps operate in water treatment and water supply systems as well as in irrigation, flood control, and desalination. They can also be used as circulation water or cooling water pumps for power stations, industrial plants and district heating networks.
